Bobcat 864 Specs

Bobcat 864 specs
ManufacturerBobcat
Model864
TypeCompact track loader
Lift DesignRadial
Years Made1999-2001

Operating Specifications

USMetric
Horsepower73.5 HP54.8 kW
Lifting Capacity (35% Tipping)1300 lbs589.7 kg
Lifting Capacity (50% Tipping)2000 lbs907.2 kg
Operating Weight8200 lbs3719.5 kg
Tipping Load5714 lbs2591.8 kg
Lift Breakout Force
Tilt Breakout Force
Max. Travel Speed6.7 mph10.7 km
Ground pressure5.5 psi38.0 kPa

Cycle Time

Raise Lift Arms4.1 sec.
Lower Lift Arms3.3 sec.
Bucket Rollback1.8 sec.
Bucket Dump2.4 sec.

Hydraulic System

USMetric
Pump Flow18.0 GPM68.1 LPM
Relief Pressure3000 psi206.8 Bar
Optional FlowN/A
Hydraulic Capacity8.0 gal30.3 L

Engine Specs

ManufacturerDeutz
ModelBF4M1011F
TypeDiesel
Cylinders4
EmissionsTier 3
Rated Speed2350 RPM
Torque Power1800 RPM
CombustionDirect injection
Compression Ratio17.1
Firing Order1-3-4-2
USMetric
Gross Power75.0 HP55.9 kW
Net Power73.5 HP54.8 kW
Displacement177 cu. in.2912 cc
Bore3.6 in.9.1 cm
Stroke4.4 in.11.2 cm
Peak Torque176 ft-lb238.6 N∙m
Coolant Capacity4.0 gal15.1 L
Engine Oil Capacity2.5 gal9.4 L
Fuel Tank Capacity25.0 gal94.6 L

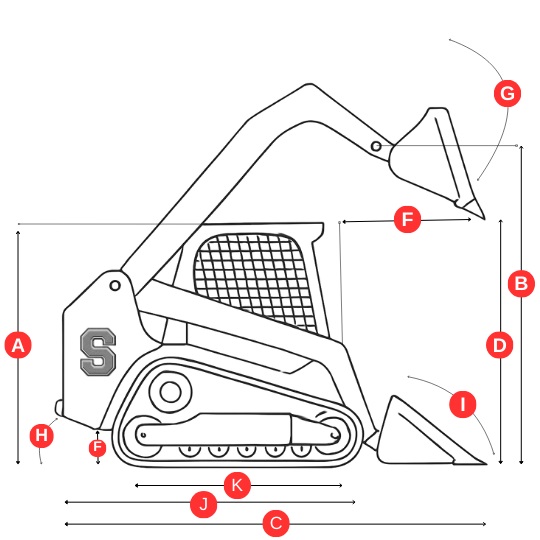

Dimensions

USMetric
AHeight82.3 in.209.0 cm
BBucket Hinge Pin121.0 in.307.3 cm

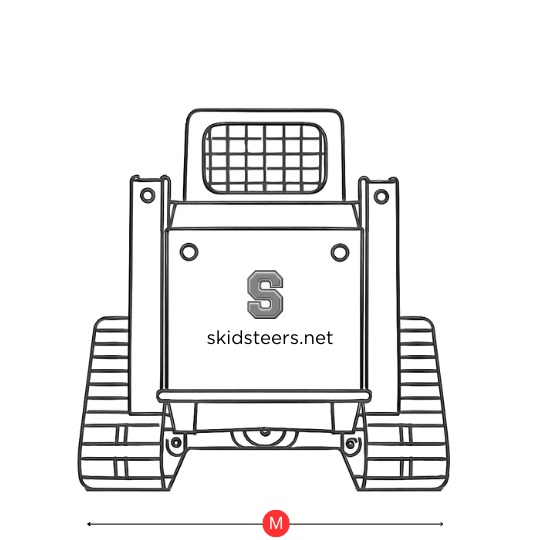

MWidth72.8 in.184.9 cm
CLength135.4 in.343.9 cm
DDump Height91.5 in.232.4 cm
EDump Reach21.3 in.54.0 cm
FGround Clearance9.3 in.23.6 cm
GDump Angle45°
HRollback Angle25°
IDeparture Angle29°

Tire Size

USMetric
Track Width12.6 in.32.0 cm
JTrack Length106.9 in.271.5 cm
KGround Contact Length
