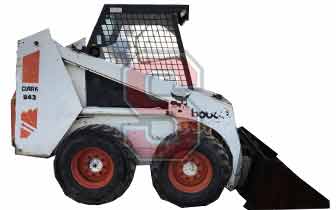

Manufacturer | Bobcat |
Model | 843 |
Type | Skid steer loader |
Lift Design | Vertical |
Years Made | 1985-1992 |
Operating Specifications
US | Metric | |
---|---|---|
Horsepower | 54.0 HP | 40.3 kW |
Lifting Capacity (35% Tipping) | 1150 lbs | 521.6 kg |
Lifting Capacity (50% Tipping) | 1700 lbs | 771.1 kg |
Operating Weight | 6500 lbs | 2948.4 kg |
Tipping Load | 3400 lbs | 1542.2 kg |
Lift Breakout Force | ||
Tilt Breakout Force | ||
Max. Travel Speed | 6.3 mph | 10.1 km |
Cycle Time
Raise Lift Arms | 4.8 sec. |
Lower Lift Arms | 3.8 sec. |
Bucket Rollback | 2.1 sec. |
Bucket Dump | 2.2 sec. |
Hydraulic System
US | Metric | |
---|---|---|
Pump Flow | 15.4 GPM | 58.3 LPM |
Relief Pressure | 2500 psi | 172.4 Bar |
Optional Flow | N/A | |
Hydraulic Capacity | 3.9 gal | 14.7 L |
Bobcat 843 was produced from 1985 to 1992.
The Bobcat 843 has a weight of 1,700 pounds.
843 Bobcat weigh 6,500 pounds.
The Bobcat 843 is powered by a Perkins engine with model number 4.154.
The Bobcat 843 has a horsepower rating of 58 HP.
The oil capacity of the Bobcat 843 is 2.4 gallons.
Engine Specs
Manufacturer | Perkins |
Model | 4.154 |
Type | Diesel |
Cylinders | 4 |
Emissions | N/A |
Rated Speed | 2600 RPM |
Torque Power | 1800 RPM |
Combustion | Indirect injection |
Compression Ratio | 21.5:1 |
Firing Order | 1-3-4-2 |
US | Metric | |
---|---|---|
Gross Power | 58.0 HP | 43.3 kW |
Net Power | 54.0 HP | 40.3 kW |
Displacement | 153.9 cu. in. | 2523 cc |
Bore | 3.5 in. | 7.6 cm |
Stroke | 4.0 in. | 10.2 cm |
Peak Torque | 113 ft-lb | 153.2 N∙m |
Coolant Capacity | 5.5 gal | 21.0 L |
Engine Oil Capacity | 2.4 gal | 9.0 L |
Fuel Tank Capacity | 21.9 gal | 83.0 L |
Dimensions
US | Metric | |
---|---|---|
Height | 80.4 in. | 204.2 cm |
Bucket Hinge Pin | 119.6 in. | 303.7 cm |
Width | 60.8 in. | 154.3 cm |
Length | 131.4 in. | 333.8 cm |
Dump Height | 94.5 in. | 239.9 cm |
Dump Reach | 24.7 in. | 62.7 cm |
Ground Clearance | 8.4 in. | 21.2 cm |
Dump Angle | 37° |
Rollback Angle | 25° |
Departure Angle | 28° |
Tire Size
Front | 8.25 x 15 |
Rear | 8.25 x 15 |
Bobcat 843 has a movable bucket that can be raised or lowered based on the task you are using the machine for. This eliminates the need to stop and manually adjust the bucket height every time you want to switch tasks and enables you to dig deeper into the ground if necessary or scoop up material from higher ground. This makes it ideal for performing small tasks around the house or yard, including moving mulch, gravel, and other materials.Bobcat 843 Review
