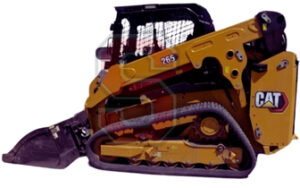

| Manufacturer | Caterpillar |
| Model | 265 |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2024-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 74.2 HP | 55.3 kW |
| Lifting Capacity (35% Tipping) | 2823 lbs | 1280 kg |
| Lifting Capacity (50% Tipping) | 4033 lbs | 1829 kg |
| Operating Weight | 10492 lbs | 4759 kg |
| Tipping Load | 8066 lbs | 3659 kg |
| Lift Breakout Force | 6739 lbs | 3057 kg |
| Tilt Breakout Force | 8680 lbs | 3937 kg |
| Max. Travel Speed | 8.1 mph | 13.0 km |
| Ground Pressure | 4.6 psi | 31.9 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 23.0 GPM | 87.1 LPM |
| Relief Pressure | 3500 psi | 241.3 Bar |
| High Flow | 30.0 GPM | 113.2 LPM |
| High Flow-XPS | 34.0 GPM | 129.0 LPM |
| Hydraulic Capacity | 9.7 gal | 36.8 L |
Engine Specs
| Manufacturer | Cat |
| Model | C2.8TA |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4F |
| Rated Speed | 2500 RPM |
| Torque Power | 1360 RPM |
| Combustion | Direct injection |
| Compression Ratio | 17:1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 74.2 HP | 55.3 kW |
| Net Power | 73.5 HP | 54.8 kW |
| Displacement | 171 cu in. | 2802 cc |
| Bore | 3.5 in. | 9.0 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 280 ft-lb | 380 N∙m |
| Coolant Capacity | 2.8 gal | 10.7 L |
| Engine Oil Capacity | 2.2 gal | 8.2 L |
| Fuel Tank Capacity | 31.7 gal | 120.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 83.3 in. | 211.5 cm |
| Bucket Hinge Pin | 132.0 in. | 335.4 cm |
| Width | 75.8 in. | 192.5 cm |
| Length | 140.9 in. | 358.0 cm |
| Dump Height | 104.5 in. | 265.5 cm |
| Dump Reach | 25.1 in. | 63.8 cm |
| Ground Clearance | 8.5 in. | 21.6 cm |
| Dump Angle | 46° |
| Rollback Angle | 27° |
| Departure Angle | 28° |
Tire Size
| US | Metric | |
|---|---|---|
| Track Width | 17.7 in. | 45.0 cm |
| Track Length | 116.1 in. | 295.0 cm |
| Ground Contact Length | 64.0 in. | 162.6 cm |
